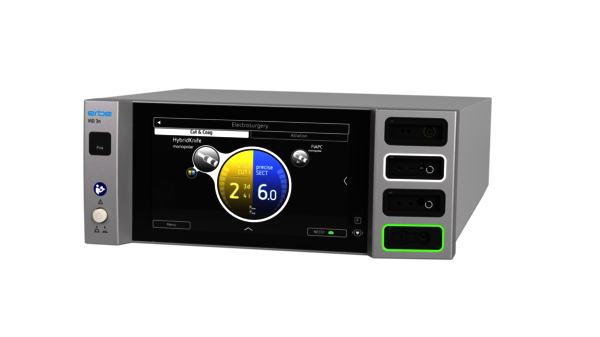

VIO® 3n Fire
Perform gastroenterology and pulmonology procedures at the highest level
REF No. 10160-010
Expanding electrosurgical applications
Learn more about VIO® 3n Fire
- State-of-the-Art Micro-processor provides measurements on target tissue at more than 25 million per second.
- Patented generator module (400W device class - high dynamics with up to 8 Amperes) enhances energy output especially with high and varying impedance loads, e.g. saline enriched electrosurgical circuit.
- Constant voltage regulation with power dosing automatically delivers lowest effective adjusted power output in all modes.
- Spark Recognition automatically detects the formation of micro electric sparks for controlled and reproducible cuts, and for applicable COAG modes to reduce carbonization and adhesion of tissue to the instrument.
- Spark Regulation (micro electric arcs) provides reproducible, efficient cuts in tissue with high or extremely low impedance
- Initial Control Support, for even the most challenging electrosurgical circuits:
- Power Peak System™ (PPS and Special PPS)
- Initial Cut Support
- Spark Support
- Tissue effect control further optimizes clinical applications for various interventions
- autoSTOP™ ends activation of select waveforms automatically
- softCOAG® with autoSTOP™ ends activation automatically when sufficient dessictation is achieved
- forcedCOAG® with autoSTOP™ ends activation automatically on detection of a spark
- Neutral Electrode Safety System (NESSY®) provides an enhanced safety profile through dynamic, patient specific neutral electrode monitoring of patient impedance levels and return electrode orientation.
- Software updates and improved service via proprietary ARTUS stickoffers continued access to the latest performance and application enhancements and more efficient Service from Erbe.
- Proprietary Voltage and Spark Control provide cutting results largely independent of the cutting speed, shape of the electrode and the tissue type as well as reproducible coagulation with optimally adjusted output
- Compact form factor with touchscreen user interface
- Guided system notifies and supports clinical and non-clinical staff during setup and operation.
- FOCUSVIEW allows active instrument to be shown on the display
- Digital instrument recognition technology automatically configures the system to preprogrammed experienced starting settings and instrument specific parameters
- stepGUIDE with illuminated socket frames for increased user friendliness
- Power bar display provides actual power utilized during and at the end of activation
- Up to 1500 program settings and 10 program groups to customize unique clinical requirements.
- Immersible and machine washable footswitch design with ReMode® functionality allows selection of up to 6 sub programs directly from the procedural field
- New and improved modes for various applications and clinical specialties, supporting monopolar, bipolar and the Erbe proprietary hybrid technology

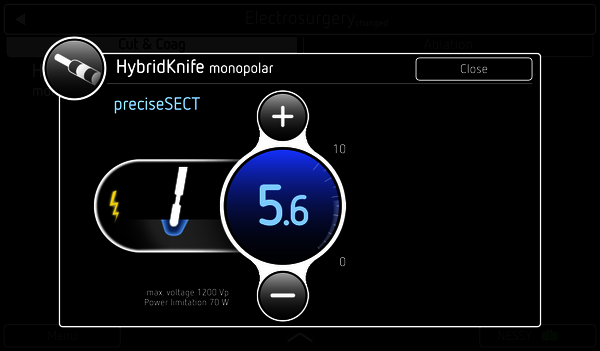

- More precision with incremental effect settings to fine tune target tissue effects
- CUT modes: autoCUT®, highCUT™, dryCUT™, endoCUT® I, endoCUT® Q, NEW: endoCUT® U, autoCUT® bipolar
- COAG modes: preciseSECT™, softCOAG®, forcedCOAG®, swiftCOAG®, twinCOAG®, sprayCOAG™, softCOAG® bipolar
- APC® waveforms available with APC® 3 module: pulsedAPC®, preciseAPC®, forcedAPC™, NEW: moveAPD®, NEW: senseAPD®
